All modules shown below can be used as standalone, intergrated into your own systems or combined with other modules in our range to complete very complex control and or monitoring systems. Our 7" HMI unit can be used as a development board for either STM32F746 or STM32H734 Processors from STMicroelectronics

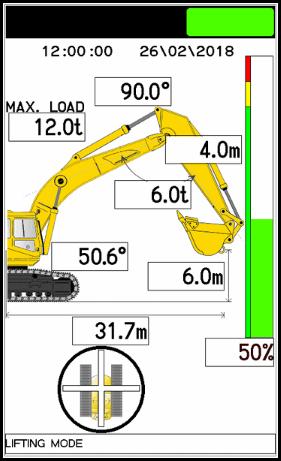

Screen layout is limited by your imagination. Visit the Gallery to view some examples of projects running on our systems.

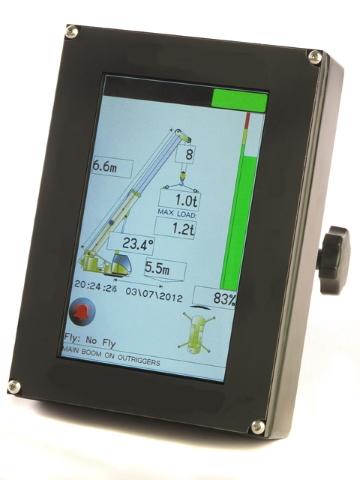

| Versatile System HMI |
|---|
| * STM32F746 or STM32H743 Processor |
| * Capacitive or Resistive Touch |
| * 6VDC to 50VDC Input Supply |
| * DUAL or QUAD SPI Serial Flash |
| * Parallel Flash |
| * RS485 Serial Port |
| * ESP32 WiFi/BLE Module |
| * CAN2.0b Port |
| * Mini SD Card Slot |
| * USB-A Port (Device) |
| * USB-B Port (Host) |
| * Buzzer Output |
| * Software Adjustable Backlight Intensity |

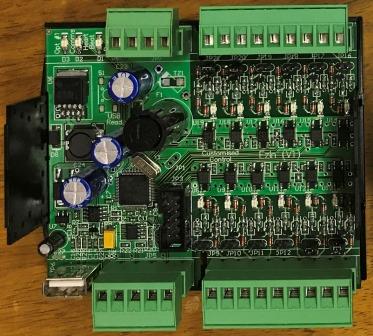

| DIN Mounted Digital Input Module |
|---|
| * 12x Optically Isolated Inputs |
| * LED Input Status Indication |
| * Trigger on Voltage or Ground input |
| * CAN 2.0b CAN Port |
| * 6VDC to 40VDC Input Voltage |
| * USB-A Port for Software update using Thumb Drive |

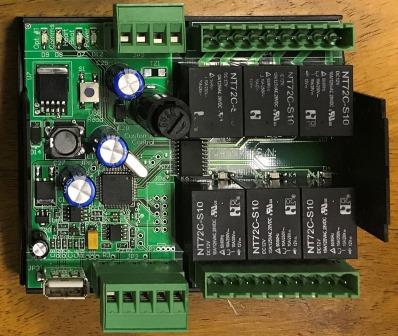

| DIN Mounted Relay Output Module |
|---|
| * 6x Potential Free Relay Contacts |
| * LED Output Status Indication |
| * CAN 2.0b CAN Port |
| * 6VDC to 40VDC Input Voltage |
| * USB-A Port for Software update using Thumb Drive |

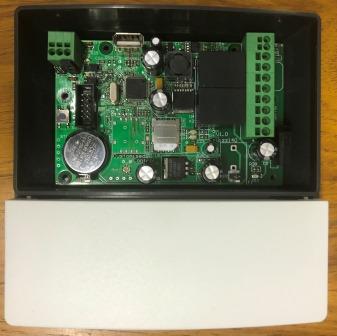

| GSM Based Controller |
|---|
| * DUAL SIM Capable |
| * 2x Optically Isolated Digital Inputs |
| * 2x Relay Outputs |
| * 6VDC to 40VDC Input Voltage |
| * USB-A Port for Software updats, Setting Changes or Logginh using Thumb Drive |
Software Manager for all products. Monitors for latest software releases and updates accordingly. The package also allows for system setting editing. Updated software is then transferred to the product using a standard USB Thumb Drive.
We are an Industrial Control company established in 1988. We've always designed around the latest technology and our products are designed and manufactured to the highest standards that are demanded of reliable industrial applications.
All our modules are available without pre-loaded software if you and to write your own system software. We can provide basic drivers and libraries written in C++. We also able to write bespoke software for your application should the quantities justify this.
We use EasyGUI for desiging screen layouts and touch screen handling on all our HMI Display units from 3.5" display up to our 7" display.
